Breakaway anchor system based on a tie wire reel

I have a pretty good anchor system which I use with an anchor trolley to anchor next to weed beds when I’m spearfishing for pike.  But a couple of weeks ago Wobbler took me sturgeon fishing, and I was real impressed by his anchor system.  It’s compact, we were anchored in 110 feet of water, and it releases easily and cleanly if you catch a big fish.  I decided to make a similar anchor system.

Wobbler’s system is based on a plastic tie wire reel.  Here's what a tie wire reel looks like.  My handle is different than Wobblers, and I included a D ring at each end of the handle so I can clip a leash or a buoy to the reel.



Wobbler uses Ashaway 200 pound tuna leader as his anchor line.  I like that a lot.  It’s plenty strong, it’s thin enough so you can get a lot of line on the reel, but it’s thick enough so it doesn’t cut your hands.

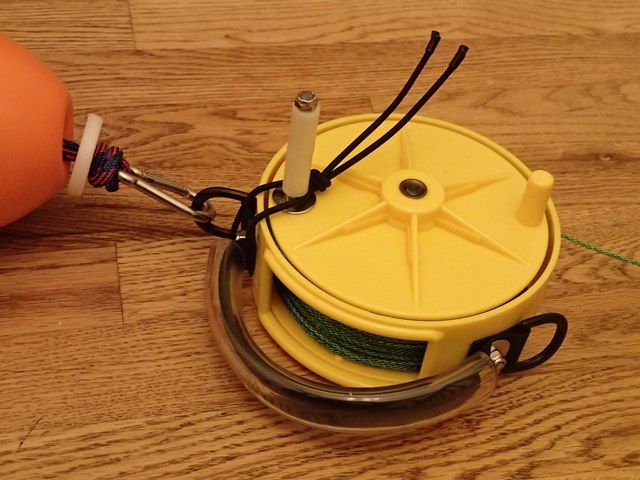

Here’s the reel and buoy.  After you drop your anchor you run the rope from the buoy through the ring in your anchor trolley, clip the end of the rope into a zig-zag cleat on your gunwale, and run the ring from your anchor trolley back to the stern of your kayak.  Then you’ll be set up facing downstream below the buoy.  The pointed end of the buoy will be pointing into the current.  To release the anchor and buoy, you just pop the rope out of the zig-zag cleat, and the rope will slide out of the ring in your anchor trolley.  It's easy to do with one hand while fighting a fish with the other hand.



Here’s the anchor.  I use grapnel style anchors because I frequently anchor in soft mud.

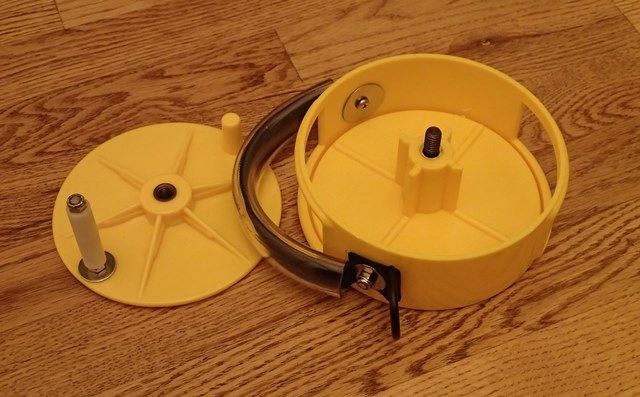

Here’s a closer look at the reel.  I added a longer crank handle to the spool.  If I don’t need to be able to break away from the anchor system, I can unclip the buoy and replace it with a rope leash.  Wobbler locks his reel with a long pin which runs through the spool and the housing, but I'm currently using a loop of shock cord, which has worked well as a lock on other things I've made.



The handle is made of a piece of plastic hose with a length of webbing running through it.  I folded over the ends of the webbing and melted holes in it for the stainless steel bolts which hold the handle to the tie wire reel.  The handle is pretty comfortable, and provides good leverage when cranking in anchor line.



Once you assemble the components, this is an easy and quick project.

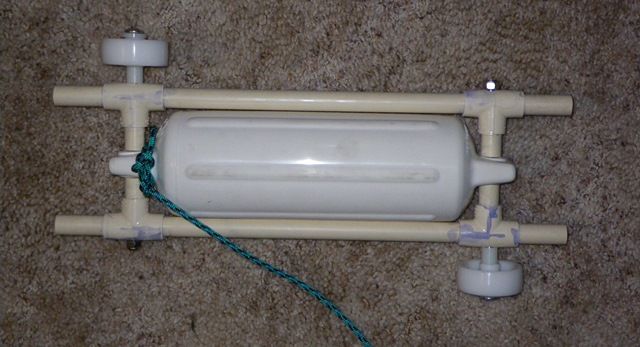

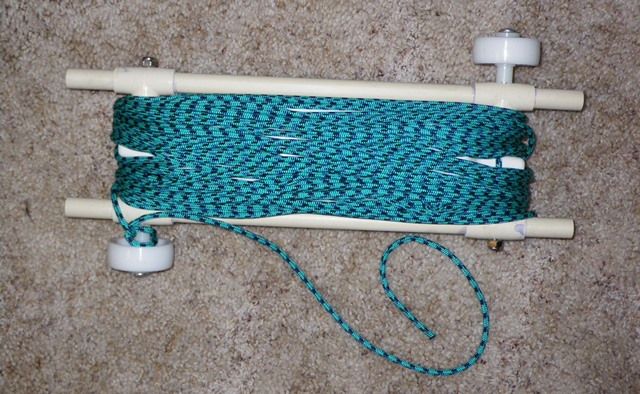

Here’s the anchor line reel which I’ve been using for spearfishing.  It works pretty well, but I like the tie wire reel better.
